Progress Report
Large-scale Silicon Quantum Computer1. Quantum Computing System
Progress until FY2022
1. Outline of the project

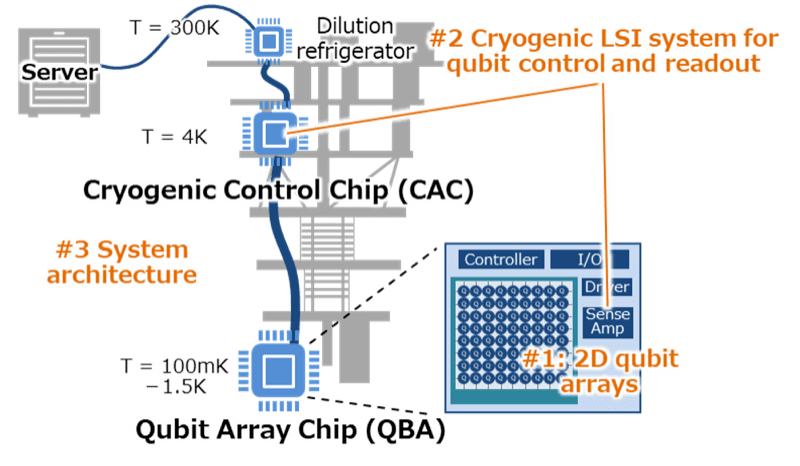

This theme is responsible for overseeing the entire project and organizing the quantum computer as a system, and is working on three specific R&D challenges (#1, #2, and #3).
The first is research on the "2D qubit array" of qubits, which is a milestone of large-scale silicon quantum computers. The second is the development of "Cryogenic LSI system for qubit control and readout." which are necessary to control the large-scale qubit array. Third, we are developing the "system architecture" to operate the system as a computer. Through these efforts, we aim to realize a large-scale silicon quantum computing system that takes full advantages of the features of silicon semiconductor technology.
2. Outcome so far
- Develop embedded-qubit CMOS process (QCMOS)
- Develop new schemes for initialization, readout, and operation for the qubit arrays
- Investigate the possibility of qubit operation in the array
- Prototype of cryogenic qubit control chips
- Develop of quantum operating systems

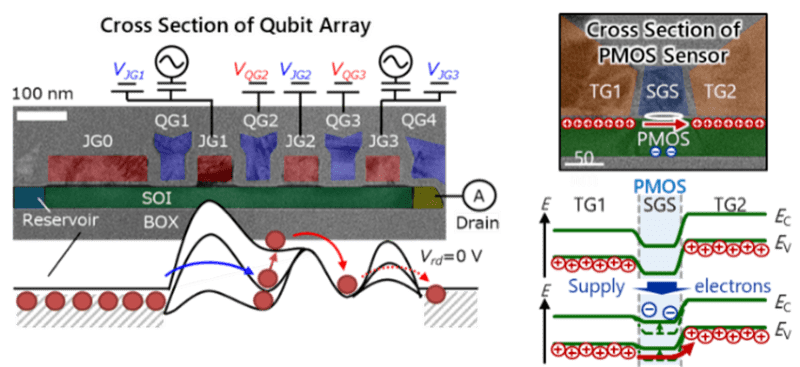

As an example, in (1), we developed and evaluated a 65-nm QCMOS process for qubit array chip (QBA), which enables 2D qubit arrays to be embedded in a CMOS chip with small modification of the process. [N. Lee et al., SSDM2021]
In (2), we developed a single-electron pumping technique that stores electrons one at a time in the quantum dots for qubit initialization, and confirmed high accuracy and stable operation. [T. Utsugi et al., JJAP2023] As an alternative to the widely-used low-density RF reflectometry, we have developed and evaluated a small-size PMOS sensing technique with nA-order sensitivity that can be integrated peripherally to the array. [D. Hisamoto et al., APEX2023]
Furthermore, regarding qubit operation, we have proposed "Shuttling qubit method," which achieves qubit operation and readout by moving (shuttling) the electrons within the array, whereas conventionally the electrons that form a qubit are fixed at the location of the quantum dots in which they are stored. [Hitachi News Release (6/12/2023)]

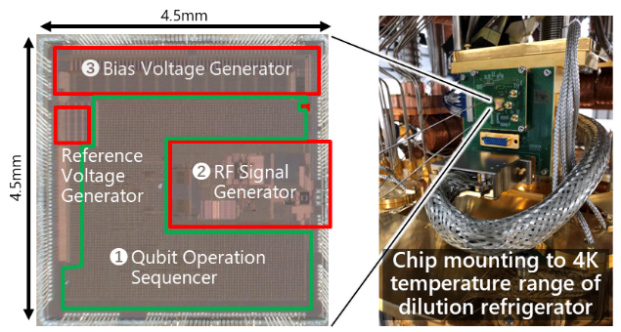

In (4), we have fabricated a 40-nm CMOS cryogenic control chip (CAC) that generates more than 50 channels of bias signals and low-jitter RF signals for qubit array control. We are currently evaluating the chip by implementing it in the 4K temperature region of a dilution refrigerator.
3. Future plans
Many innovations are essential to reach the goal. Collaboration within and outside the project will enable qubit operation in a qubit array structure, and furthermore, system-level implementation will improve the reliability and efficiency of the qubit operations.
