JST Press Release

March 23, 2023

Japan Science and Technology Agency (JST)
5-3, Yonbancho, Chiyoda-ku, Tokyo

Speedy and highly accurate prediction of flow phenomena

AI accelerates evaluation processes in design and manufacturing

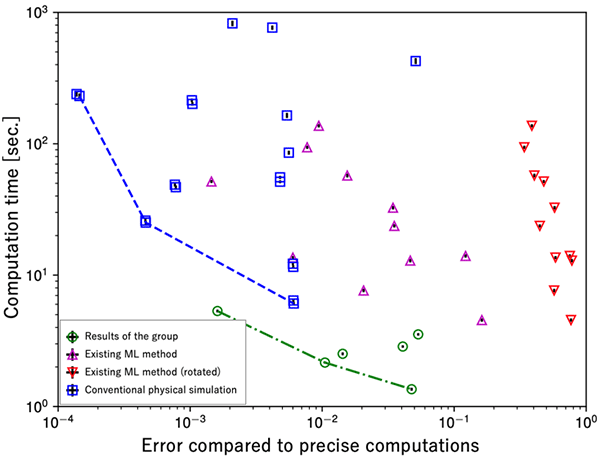

A research group led by Masanobu Horie at RICOS Co. Ltd. in collaboration with Assistant Professor Naoto Mitsume of Tsukuba University, have successfully used AI to realize highly accurate and high-speed predictions of the flow of water and air and other phenomena. This technology achieves a sophisticated balance between accuracy and computation time (measured on the same computer) that was not achievable with existing physical simulations and other AI methods.

Physical simulations (1) are the mainstream methods for predicting flow phenomena. However, there is a trade-off between accuracy and computation time; high-accuracy analysis of the phenomena requires a long computation time, and simplifying the process to shorten the computation time reduces prediction accuracy. In recent years, extensive research has been conducted on constructing models that predict physical phenomena using a fundamental AI technology known as machine learning (2). However, this approach was often not applicable to simulations under complex conditions as handled in conventional physical simulations, and there were issues in terms of reliability and versatility.

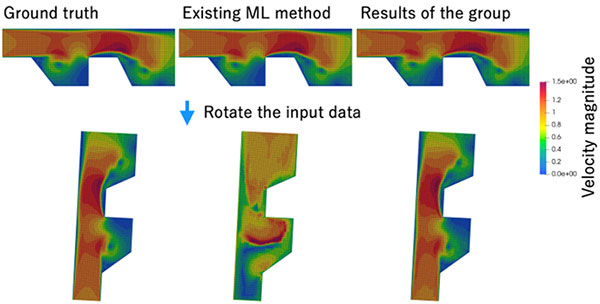

By combining physical simulations and machine learning, this research group realized a high-speed prediction model that guarantees reliability and versatility, while leveraging the strengths of machine learning to make predictions based on existing data. The group achieved high-speed predictions without significantly compromising the accuracy compared to conventional physical simulations by having the model learn from highly accurate simulation data prepared in advance. In addition, this newly-developed technology theoretically proves that prediction accuracy does not deteriorate, whereas prediction accuracy dropped with existing machine learning technology when observing the same phenomenon from a different perspective.

In the physical simulations of flow phenomena, boundary conditions are given for phenomena, such as considering the parts of “openings where air enters” and “walls that do not allow air to pass through”. However, existing machine learning technology could not strictly take such specific condition into account. The new technology successfully combines machine learning algorithms with a rigorous treatment of the boundary conditions by formulating correspondence between input physical conditions and those in the abstract, high-dimensional data space handled by machine learning algorithms. This was realized by embedding the computational methods of physical simulations in a machine learning algorithm, which is a unique feature of this technology. This time, the research group succeeded in showing the possibility that machine learning can have the same versatility as conventional physical simulation without losing the advantages of machine learning.

This technology is expected to accelerate the evaluation process by simulating flow phenomena, which can be a bottleneck in design and manufacturing, and improve the efficiency of the entire design and manufacturing processes. It may also be an important step to increasing the accuracy of weather forecasts and to improving the efficiency of ventilation systems to prevent the spread of infectious diseases caused by droplets.

(1) Physical simulation

A generic term for a technology that predicts physical phenomena using computer calculations based on the laws of physics. Physical phenomena that occur in the real world are complex, particularly in terms of the mechanism and shape in which the physical phenomenon occurs, making it difficult to directly solve mathematical equations that represent the physical laws. Accordingly, approximate solutions using physical simulations are widely used in design, manufacturing, weather prediction, etc.

(2) Machine learning (ML)

A generic term for a method to obtain a model that can predict unknown data by finding rules from known data. It has attracted attention as a fundamental method for realizing artificial intelligence (AI), and neural networks are mainly used by because of their high level of flexibility.

The research “Physics-Embedded Neural Networks: Graph Neural PDE Solvers with Mixed Boundary Conditions” by Dr. Masanobu Horie and Dr. Naoto Mitsume, was presented at the Advances in Neural Information Processing Systems 35 (NeurIPS 2022) online March 22, 2023.

This study was supported by JST under the PRESTO program: "Fluid modeling using a combination of numerical analysis and machine learning" in the research area of "New Fluid Science for Understanding, Prediction and Control of Complex Flow and Transport Phenomena".

Program Information

Research Area: New Fluid Science for Understanding, Prediction and Control of Complex Flow and Transport Phenomena
Research Theme “Fluid modeling using a combination of numerical analysis and machine learning”
